German Style Tri-Axle Mechanical Suspension

Built for extreme heavy-haul durability and precise tracking on European-spec trailers.
Featuring heavy-duty cast hangers and low-friction wear plates, our German-engineered suspension lowers maintenance costs while protecting your cargo and chassis across long-haul transport routes.

Send Inquiry

Product Introduction

Product Overview

Our German Style Tri-Axle Mechanical Suspension is engineered to provide high load-bearing efficiency and superior directional tracking for European-spec commercial trailers, tank semi-trailers, and heavy equipment haulers. Designed around robust cast-steel hangers, heavy-duty equalizer rockers, and high-tensile parabolic leaf springs, this system effectively dampens severe road impacts while equalizing weight across all three axles. It offers trailer manufacturers and fleet operators a reliable, long-service chassis platform built to withstand demanding transport environments.

Specifications

1 German Suspension

2 Suspension Technical Drawing

Item No.	Axle No.	A(Empty Load)	B(Full Load)	Capability	Axle Stype	Leaf spring
Item No.	Axle No.	kg	kg	Capability	Axle Stype	Leaf spring
HOT-SPE2	2	405	375	14x2	○127	75x20x3L
HOT-SPE3	3	405	375	14x3	○127	75x20x3L

Key Features & Operational Advantages

Heavy-Duty Cast Steel Hangers for Structural Rigidity

Unlike standard stamped steel suspension components, the German Style Tri-Axle Mechanical Suspension utilizes high-density cast steel front, middle, and rear hangers. This heavy-duty construction increases resistance against lateral forces, preventing frame distortion during sharp cornering under max payload.

Low-Maintenance Modular Design for Fleet Efficiency

We design the bushing sleeves and rocker wear plates with wear-resistant materials that lengthen lubrication intervals. The modular layout enables fleet technicians to swap out individual leaf springs or worn torque rods independently, reducing repair turnaround times and keeping trailers on the move.

Quality Control & Production

We manufacture every German Style Tri-Axle Mechanical Suspension using computer-controlled CNC machining, automated robotic welding, and shot-blasted surface treatments. Each hanger, rocker arm, and spring seat is verified for dimensional accuracy, bushing press-fit alignment, and weld integrity. Before export shipment, our QA team performs load-bearing fatigue checks and anti-corrosion coating audits to guarantee long-term operational safety.

4 Suspension Component Assembly Line

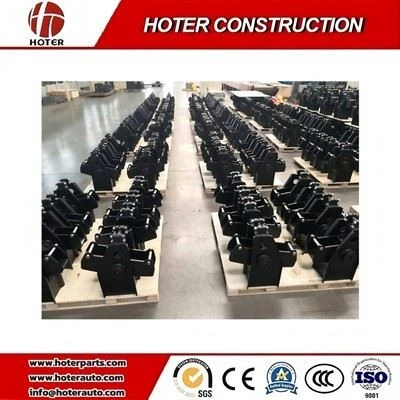

5 Bracket Storage Area

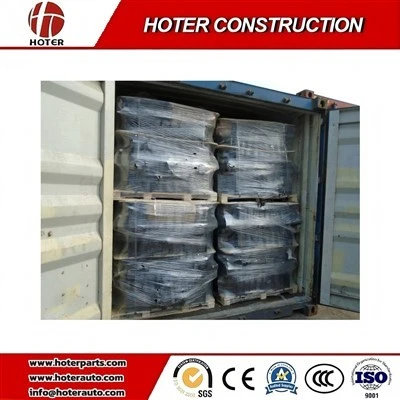

6 Finished Suspension Packing Area

FAQ

Q: What trailer configurations are best suited for this German style suspension?

A: It is ideal for European-standard flatbed trailers, fuel tankers, skeleton container chassis, side-wall trailers, and heavy-duty dump semi-trailers operating on challenging road surfaces.

Q: Can this suspension assemble directly onto round 127mm axle beams?

A: Yes, the spring seats and torque rod mounts are specifically designed to align perfectly with standard Ø127 mm round axle tubes commonly used in European trailer builds.
