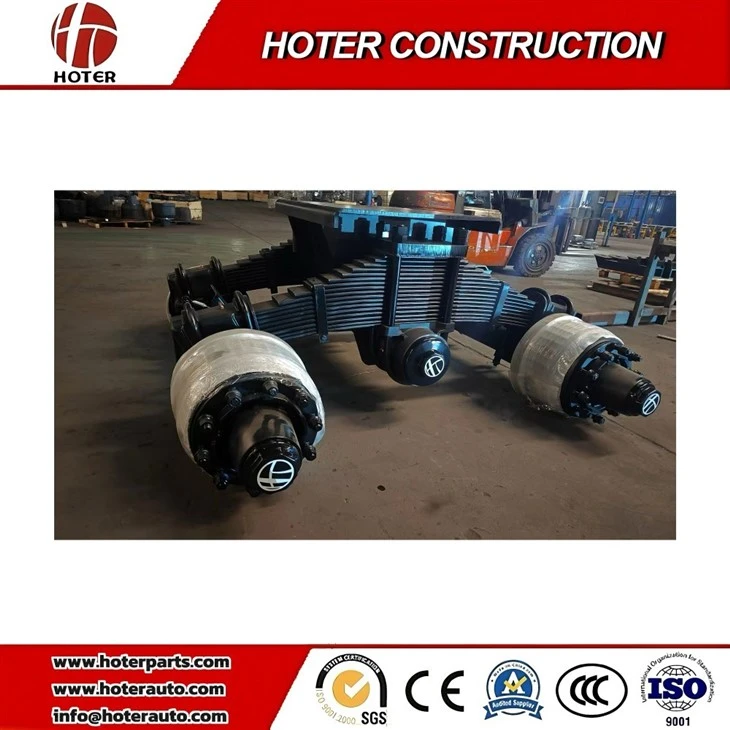

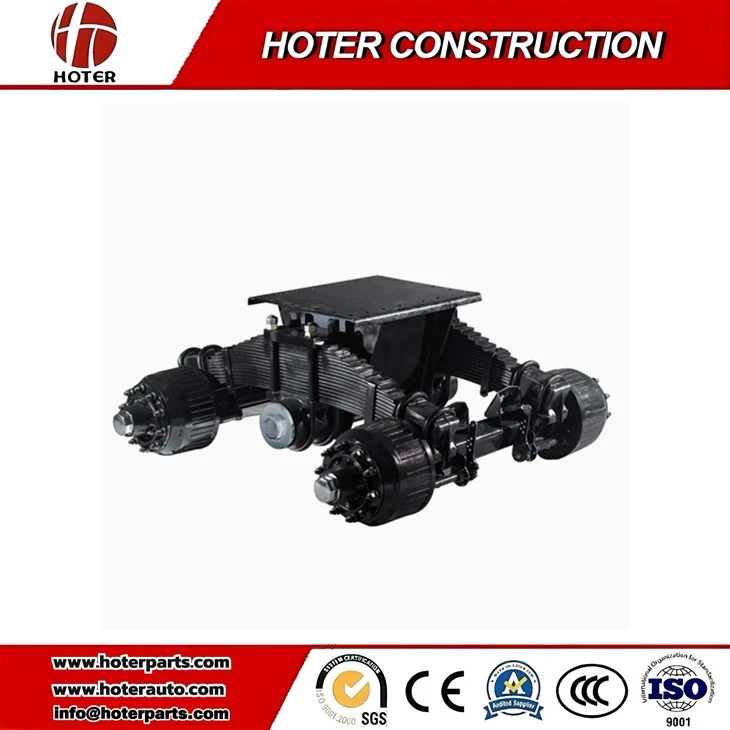

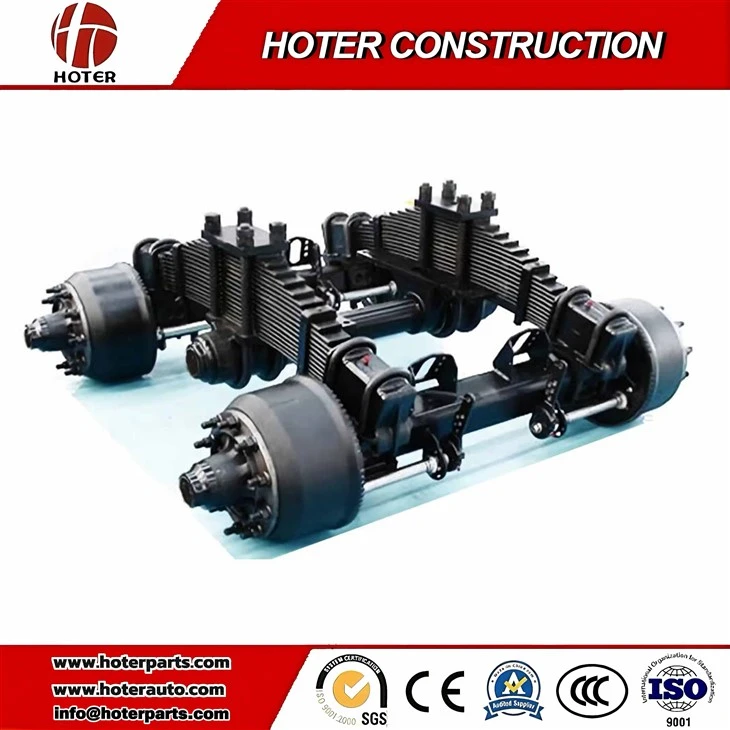

28T BPW Type Bogie
Product Overview
Within heavy-duty trailer running gear, bogie systems are available in different load ratings and structural layouts to match various transport requirements. The 28T BPW Type Bogie belongs to the medium-capacity range and is commonly selected for trailers that require a complete two-axle bogie assembly instead of individually sourced suspension components.
Its standardized design allows manufacturers and parts distributors to organize purchasing more efficiently while offering flexibility for different trailer configurations. The 28T BPW Type Bogie is available in multiple installation styles to accommodate a wide range of commercial trailer projects.
Specifications
|
Bogie(spoke) |
High plate |
||||||
|
Item No. |
Rated Load(kg) |
Weight(kg) |
Bearing type |
Brake Lining(mm) |
Dual Spacing(mm) |
Leaf Spring(mm) |
Axle Space(mm) |
|
HTHS24-232201 |
24000 |
2150 |
33213/33118 |
Φ420*200 |
1850 |
980 |
1500 |
|
HTHS28-242301 |
28000 |
2550 |
33215/32219 |
Φ420*200 |
1900 |
900 |
1550 |
|
HTHS32-242301 |
32000 |
2600 |
32314/32222 |
Φ420*200 |
1900 |
900 |
1550 |
|
HTHS36-242301 |
36000 |
2700 |
33214/32222 |
Φ420*220 |
1900 |
900 |
1550 |
Feature
Complete Bogie Assembly for Easier Sourcing
The 28T BPW Type Bogie combines axle, suspension, and related components into one complete system. This helps trailer manufacturers and distributors reduce the time spent matching individual parts and simplifies purchasing for replacement or production projects.
Multiple Configuration Options
Different trailer designs may require different installation layouts. The bogie system can be supplied with different mounting styles and specifications, allowing customers to select a configuration that matches their chassis requirements and application needs.

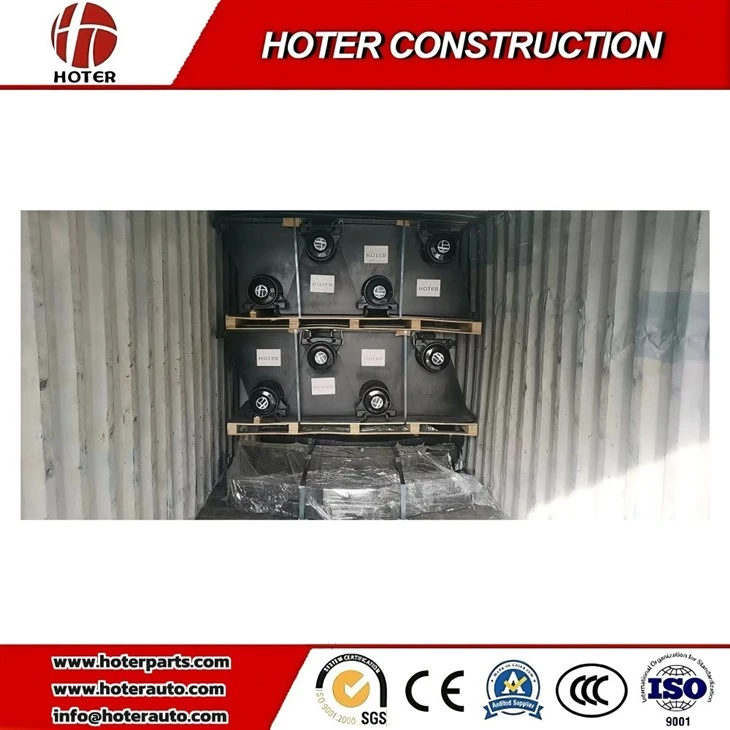

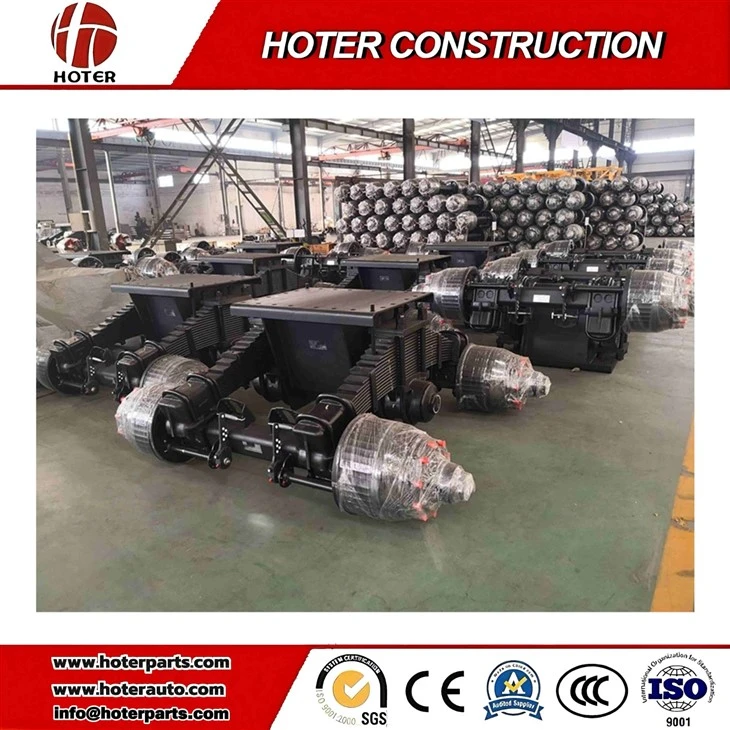

Package & Delivery
Production is organized according to confirmed technical specifications to maintain consistency across every manufacturing batch. Each order is checked for configuration, matching components, and overall assembly condition before packing, helping ensure the delivered products correspond with customer requirements.
Hot Tags: 28t bpw type bogie, China 28t bpw type bogie manufacturers, suppliers, bogie, bogie trailer, BPW Type Bogie, tractor bogie
